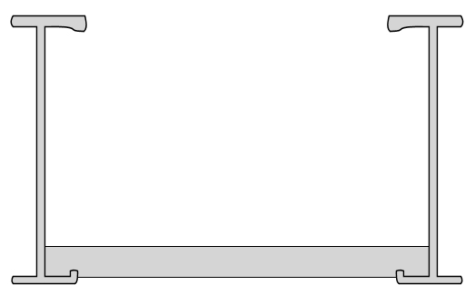

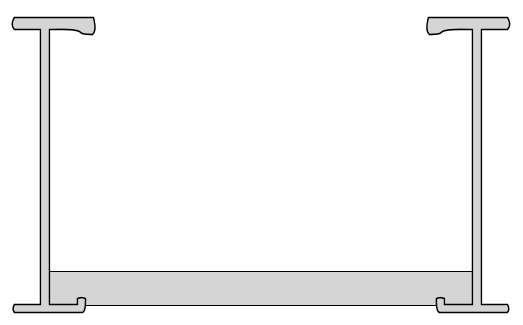

8HAF - 8" Side Height, Heavy Duty Ladder Tray
8HAF - Heavy Duty Aluminum Ladder Tray
Side Height - 8"
Load Depth - 7"
NEMA Load / Span Rating - 30C
Cable Loading (lb/ft) -
16' Span - 572 (lb/ft)
18' Span - 450 (lb/ft)
20' Span - 363 (lb/ft)
24' Span - 249 (lb/ft)
30' Span - 155 (lb/ft)
35' Span - 100 (lb/ft)
*Rung spacing available in 6", 9", 12", and 18".

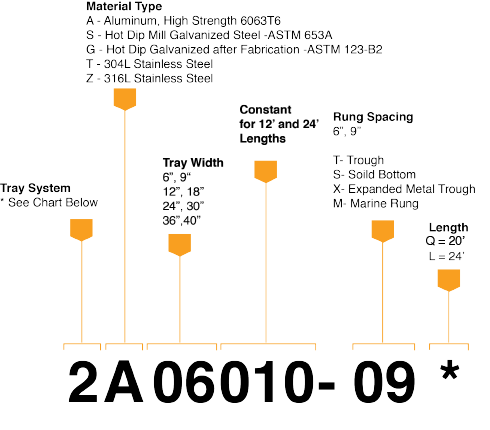

Refer to part number chart to the right for all custom sizes and styles.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 8HAF09010-09Q |
|
9" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 8HAF09010-09Q | |
| 8HAF12010-09Q |
|
12" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 8HAF12010-09Q | |
| 8HAF18010-09Q |
|
18" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 8HAF18010-09Q | |
| 8HAF24010-09Q |
|
24" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 8HAF24010-09Q | |
| 8HAF30010-09Q |
|
30" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 8HAF30010-09Q | |
| 8HAF36010-09Q |
|
36" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 8HAF36010-09Q | |
| 8HAF42010-09Q |
|
42" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 8HAF42010-09Q | |
| 8HAF09010-09L |
|
9" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 8HAF09010-09L | |
| 8HAF12010-09L |
|
12" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 8HAF12010-09L | |
| 8HAF18010-09L |
|
18" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 8HAF18010-09L | |
| 8HAF24010-09L |
|
24" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 8HAF24010-09L | |
| 8HAF30010-09L |
|
30" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 8HAF30010-09L | |
| 8HAF36010-09L |
|
36" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 8HAF36010-09L | |
| 8HAF42010-09L |
|
42" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 8HAF42010-09L |
Aluminium
