875A - 8" Side Height, Heavy Duty Ladder Tray
875A - Heavy Duty Aluminum Ladder Tray
Side Height - 8"
Load Depth - 7"
NEMA Load / Span Rating - 30C / 24C
Cable Loading (lb/ft) -
14' Span - 484 (lb/ft)
16' Span - 370 (lb/ft)
18' Span - 293 (lb/ft)
20' Span - 237 (lb/ft)
24' Span - 158 (lb/ft)
30' Span - 101 (lb/ft)
*Rung spacing available in 6", 9", 12", and 18".

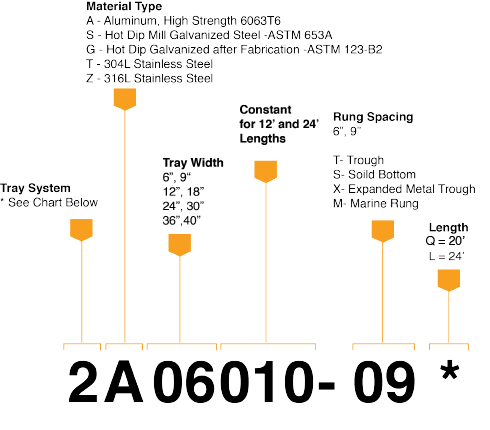

Refer to part number chart to the right for all custom sizes and styles.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 875A09010-09Q |
|
9" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 875A09010-09Q | |
| 875A12010-09Q |
|
12" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 875A12010-09Q | |
| 875A18010-09Q |
|
18" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 875A18010-09Q | |
| 875A24010-09Q |
|
24" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 875A24010-09Q | |
| 875A30010-09Q |
|
30" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 875A30010-09Q | |
| 875A36010-09Q |
|
36" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 875A36010-09Q | |
| 875A42010-09Q |
|
42" Wide - 20' Long - 9" Rung Spacing | 1- 20' Length | 875A42010-09Q | |
| 875A09010-09L |
|
9" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 875A09010-09L | |
| 875A12010-09L |
|
12" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 875A12010-09L | |
| 875A18010-09L |
|
18" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 875A18010-09L | |
| 875A24010-09L |
|
24" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 875A24010-09L | |
| 875A30010-09L |
|
30" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 875A30010-09L | |
| 875A36010-09L |
|
36" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 875A36010-09L | |
| 875A42010-09L |
|
42" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 875A42010-09L |
Aluminium
