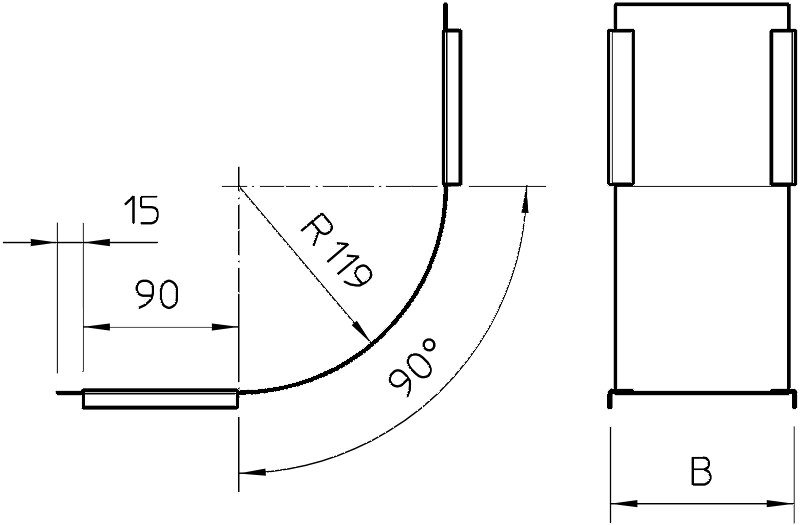

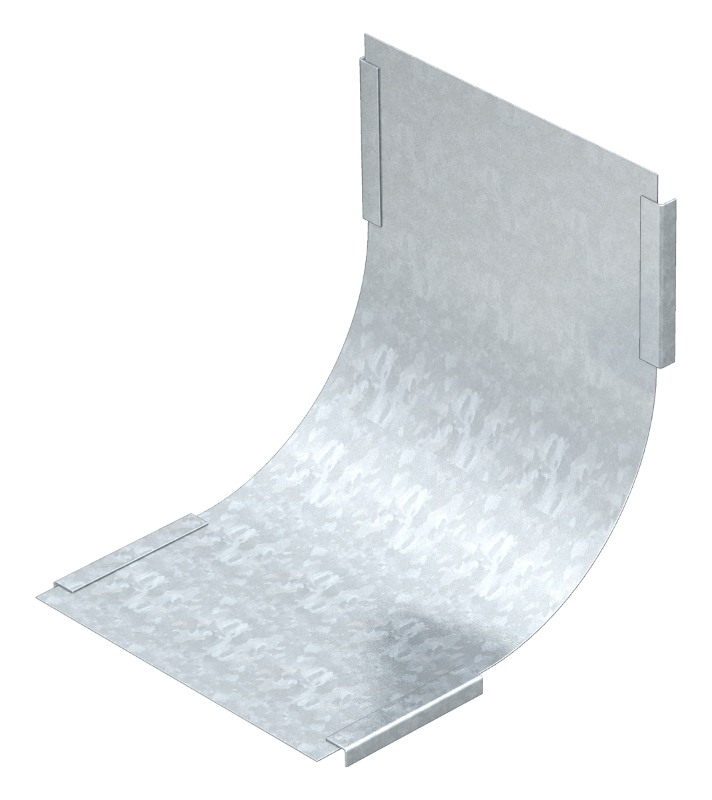

Cover for 90° Vertical Bend, Rising
Cover for all rising vertical bends.
The fastening is guaranteed by the overlap of the cable tray covers. The cover can also be fastened using cover clamps.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| DBV 100 S FS |
|
Cover for 90° Vertical Bend, Rising, 4" Width, Strip-Galvanized | 1 | 46.30 | 7130805 |
| DBV 150 S FS |
|
Cover for 90° Vertical Bend, Rising, 6" Width, Strip-Galvanized | 1 | 66.14 | 7130809 |
| DBV 200 S FS |
|
Cover for 90° Vertical Bend, Rising, 8" Width, Strip-Galvanized | 1 | 85.98 | 7130813 |
| DBV 300 S FS |
|
Cover for 90° Vertical Bend, Rising, 12" Width, Strip-Galvanized | 1 | 108.03 | 7130817 |
| DBV 400 S FS |
|
Cover for 90° Vertical Bend, Rising, 16" Width, Strip-Galvanized | 1 | 149.91 | 7130821 |
| DBV 500 S FS |
|
Cover for 90° Vertical Bend, Rising, 20" Width, Strip-Galvanized | 1 | 189.60 | 7130825 |
| DBV 600 S FS |
|
Cover for 90° Vertical Bend, Rising, 24" Width, Strip-Galvanized | 1 | 231.49 | 7130829 |
| DBV 100 S DD |
|
Cover for 90° Vertical Bend, Rising, 4" Width, Double Dipped | 1 | 74.96 | 7131508 |
| DBV 150 S DD |
|
Cover for 90° Vertical Bend, Rising, 6" Width, Double Dipped | 1 | 110.20 | 7131509 |
| DBV 200 S DD |
|
Cover for 90° Vertical Bend, Rising, 8" Width, Double Dipped | 1 | 145.51 | 7131510 |
| DBV 300 S DD |
|
Cover for 90° Vertical Bend, Rising, 12" Width, Double Dipped | 1 | 178.57 | 7131514 |
| DBV 400 S DD |
|
Cover for 90° Vertical Bend, Rising, 16" Width, Double Dipped | 1 | 249.12 | 7131518 |
Strip Galvanised
Double-Dip
