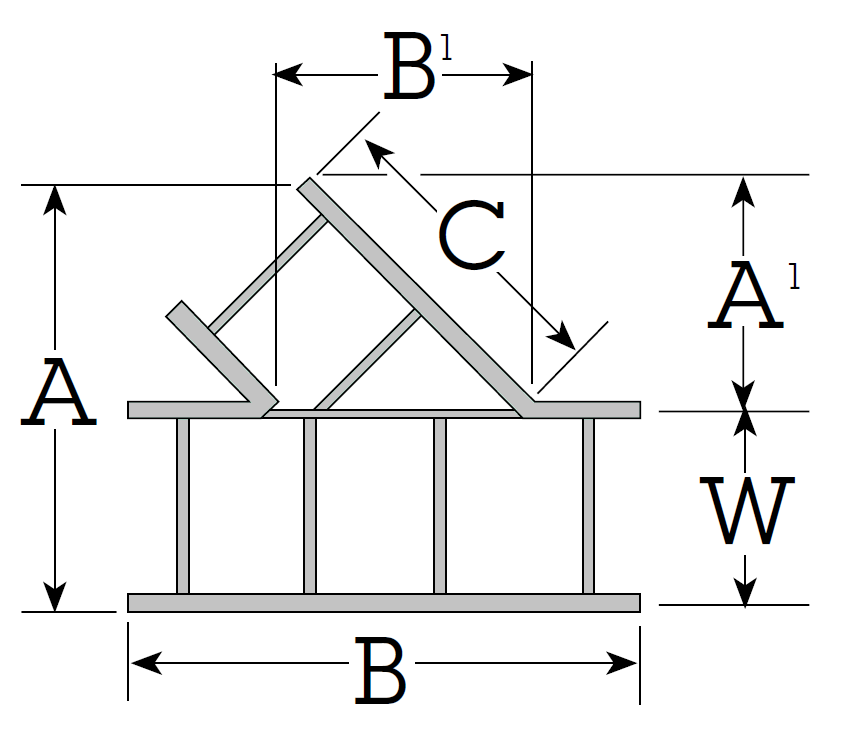

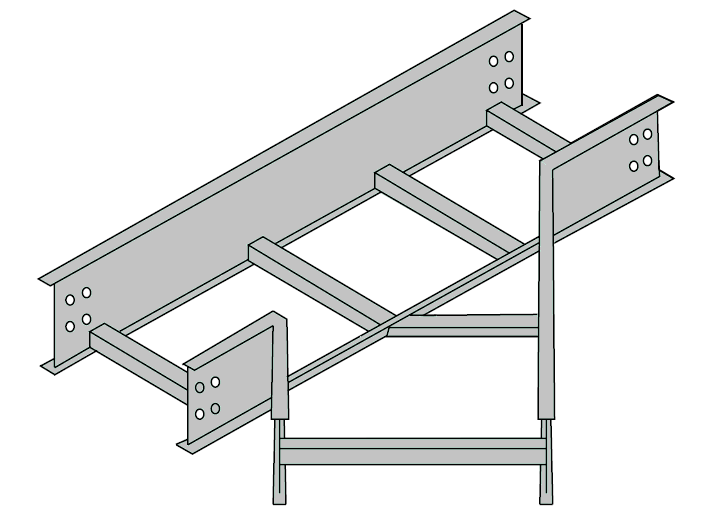

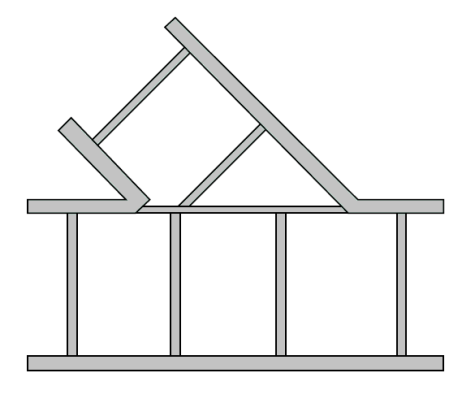

Left or Right Hand Wye
Number of rungs vary depending on Tray width.
Special Wyes can be made with two different Tray widths. Consult factory.
Each Wye is furnished with two pairs (4) Splice Plates and eight (8) 9TBN302 Nut and Bolt Assemblies.

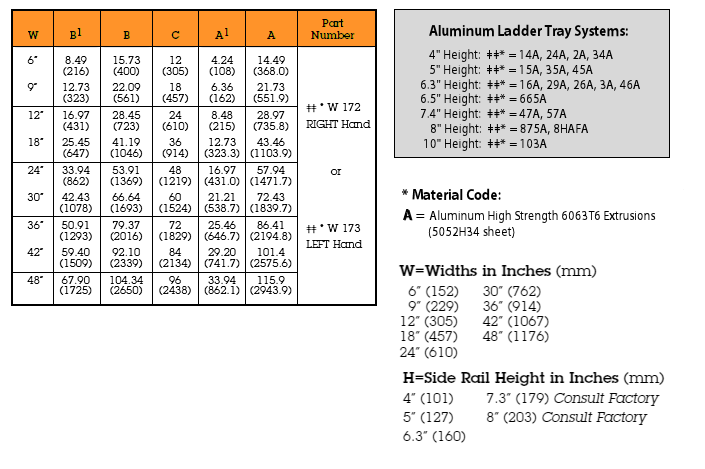

Refer to chart image below for all sizes and part numbers.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 14A06172 |
|
Right Hand Wye, for 14A Aluminum Ladder Tray, 6" width. | 14A06172 | ||
| 14A09172 |
|
Right Hand Wye, for 14A Aluminum Ladder Tray, 9" width. | 14A09172 | ||
| 14A12172 |
|
Right Hand Wye, for 14A Aluminum Ladder Tray, 12" width. | 14A12172 | ||
| 14A18172 |
|
Right Hand Wye, for 14A Aluminum Ladder Tray, 18" width. | 14A18172 | ||
| 14A24172 |
|
Right Hand Wye, for 14A Aluminum Ladder Tray, 24" width. | 14A24172 | ||
| 14A30172 |
|
Right Hand Wye, for 14A Aluminum Ladder Tray, 30" width. | 14A30172 | ||
| 14A36172 |
|
Right Hand Wye, for 14A Aluminum Ladder Tray, 36" width. | 14A36172 | ||
| 14A42172 |
|
Right Hand Wye, for 14A Aluminum Ladder Tray, 42" width. | 14A42172 |
Aluminium
Description
