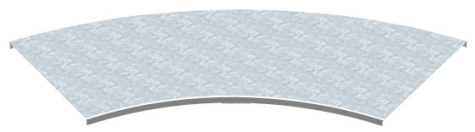

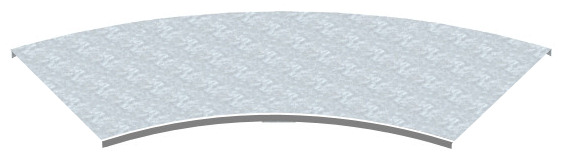

60° Horizontal Bend Cover, Stainless Steel

Available in Flanged and Flat styles only.

To order covers, substitute the "Tray
System" number (ǂǂ) with:
     7 = Flanged style cover
   67 = Flat style cover

Material code (*):
     T = 304L Stainless Steel
     Z = 316L Stainless Steel

Example:
 248T06025 = 60° Horizontal Bend.
     7T06025 = Flanged Style Cover for 60° Horizontal Bend.
   67T06025 = Flat Style Cover for 60° Horizontal Bend.

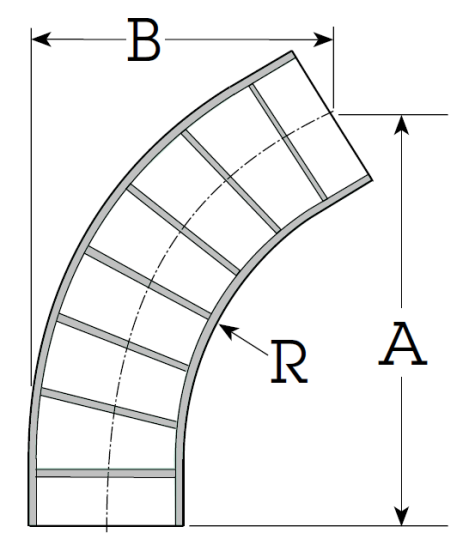

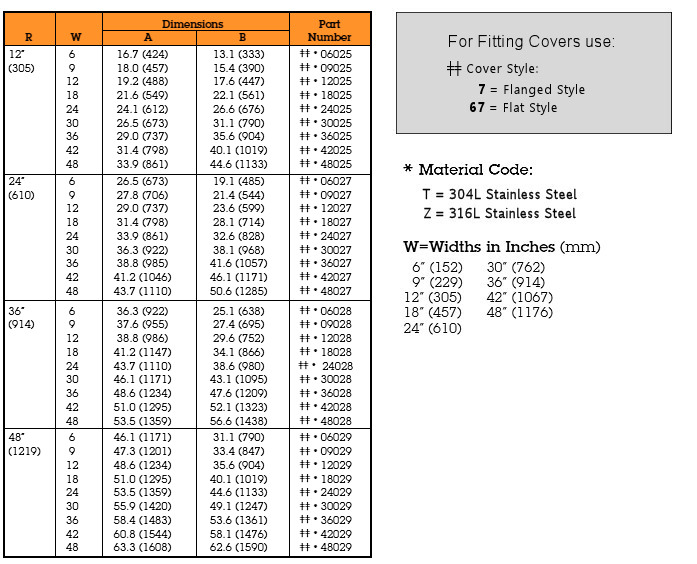

Refer to chart image below for all sizes and part numbers.
