Straight Reducer Splice Plate, Stainless Steel

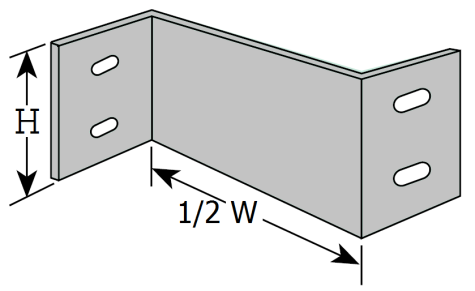

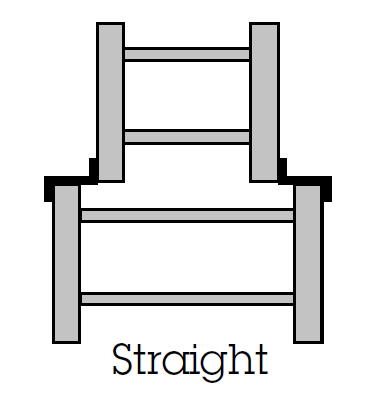

For a concentric straight reduction, the dimension "W" is the total reduction.

For all size options, see the Part Number Builder graphic below using the following variables:

ǂǂ = Tray System
  *  = Type of Material
        (T = 304L Stainless Steel
         Z = 316L Stainless Steel)

For example: The part number for a Straight Reducer Splice Plate, with a width of 12", to be used with 248T Ladder Tray would be: 248T12237.

      248 = Tray System
         T = Type of Material (304L Stainless Steel)
        12 = Total Reduction Width in Inches*
      237 = Corresponding sku suffix for a Straight Reducer
                Splice Plate.

*Box contains (2)  6" Reducer Splice Plates, for a total reduction of 12".
