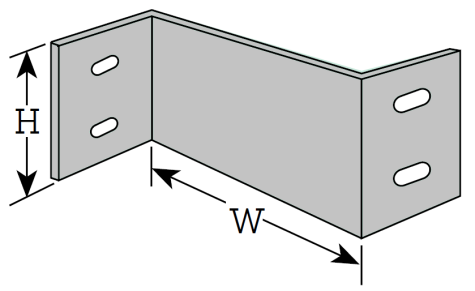

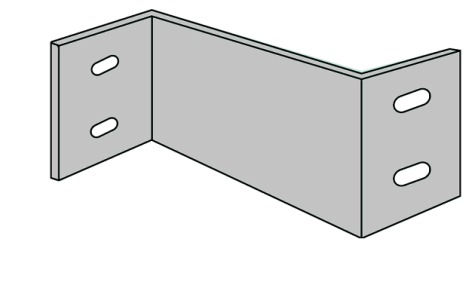

Offset Reducer Splice Plate, Stainless Steel

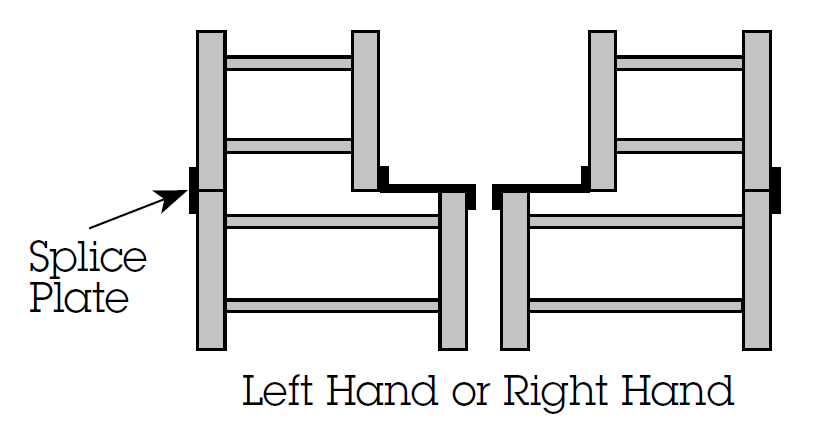

Where application calls for a left or right hand reduction, Chalfant reducing splice plates are sold with a standard splice plate ǂǂ * SP200.

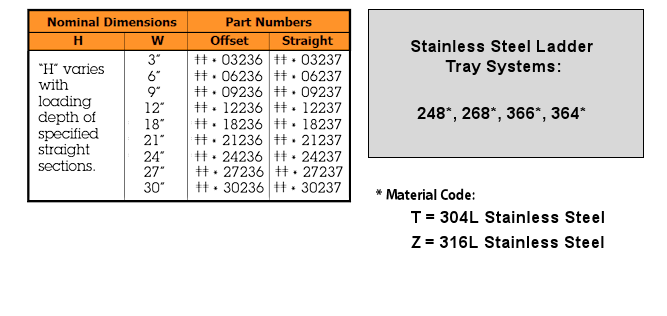

For all size options, see the Part Number Builder graphic below using the following variables:

ǂǂ = Tray System
  *  = Type of Material
         (T = 304L Stainless Steel
          Z = 316L Stainless Steel)

For example: The part number for an Offset Reducer Splice Plate, with a width of 12", to be used with 248T Ladder Tray would be: 248T12236.

      248 = Tray System
         T = Type of Material (304L Stainless Steel)
        12 = Total Reduction Width in Inches
      236 = Corresponding sku suffix for an Offset Reducer
                Splice Plate.
