Bonding Jumper
If you are using the tray as an equipment ground as classified by UL, you must use a bonding jumper (one only with Series 6 single piece construction) for bridging adjustable splice plates and runs that aren't connected or across expansion joints.
- For steel trays use a 200 Amp Jumper. This provides a 100 Amp equipment ground through 18" width tray, and a 200 Amp ground on 24" wide tray.
- For aluminum trays use a 600 Amp jumper to 18" widths and two 600 Amp jumpers to provide 1000 Amp ground for 24" wide tray. For 64A24010 and 66A24010 tray you get 1200 Amp ground.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 9CBJ200 |
|

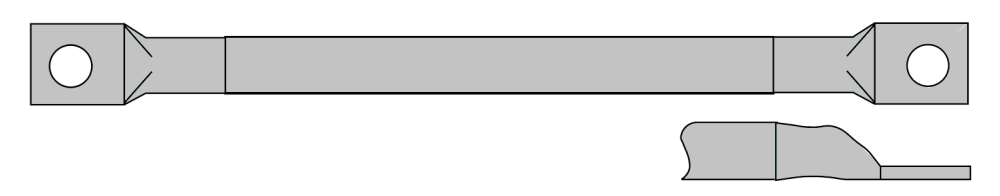

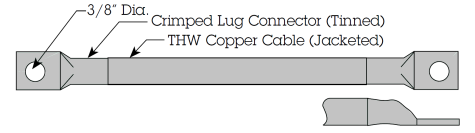

Bonding Jumper, Cable Size #6, Rated Amps 200. | 9CBJ200 | ||
| 9CBJ600 |
|

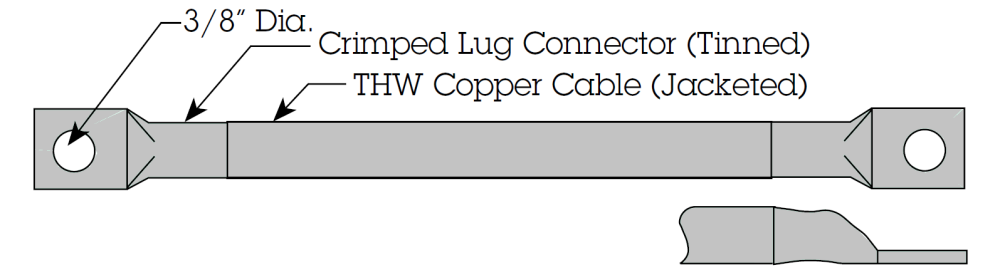

Bonding Jumper, Cable Size #1, Rated Amps 600. | 9CBJ600 |
