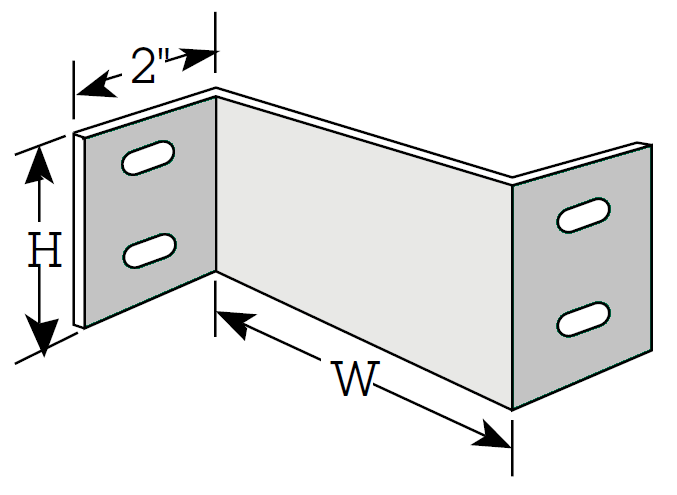

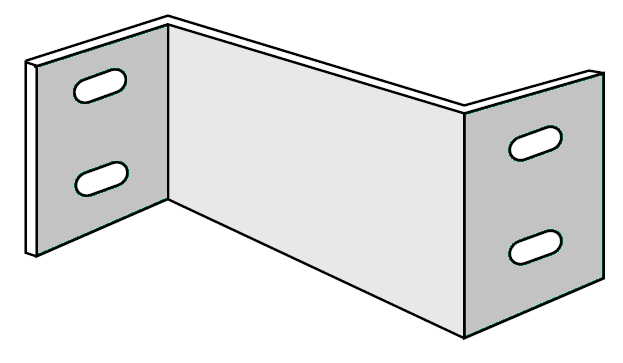

Offset Reducer Splice Plate

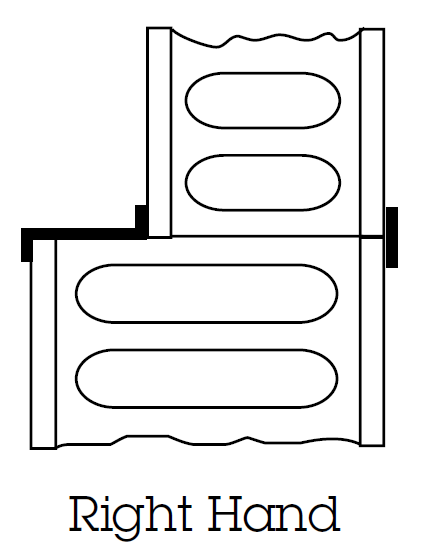

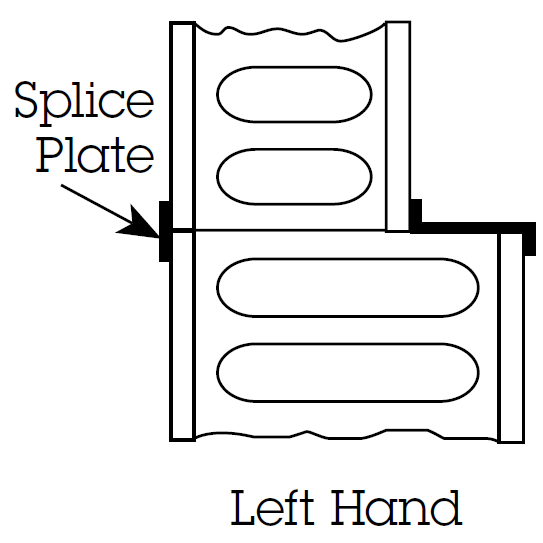

Reducers are installed on outside of tray. For right or left hand reducers, the Splice Plate element installs on the outside. This is a very inexpensive method of joining various widths.
Note: Complete set of hardware furnished with each reducer.
| Type | Name | Pack pcs. | Weight lb/100pc | Sku | |
|---|---|---|---|---|---|
| 6A03236 |
|
Offset Reducer Splice Plate, 3" Height, 3" Reduction Width | 6A03236 | ||
| 6A06236 |
|
Offset Reducer Splice Plate, 3" Height, 6" Reduction Width | 6A06236 | ||
| 6A09236 |
|
Offset Reducer Splice Plate, 3" Height, 9" Reduction Width | 6A09236 | ||
| 6A12236 |
|
Offset Reducer Splice Plate, 3" Height, 12" Reduction Width | 6A12236 | ||
| 6A18236 |
|
Offset Reducer Splice Plate, 3" Height, 18" Reduction Width | 6A18236 | ||
| 64A03236 |
|
Offset Reducer Splice Plate, 4" Height, 3" Reduction Width | 64A03236 | ||
| 64A06236 |
|
Offset Reducer Splice Plate, 4" Height, 6" Reduction Width | 64A06236 | ||
| 64A09236 |
|
Offset Reducer Splice Plate, 4" Height, 9" Reduction Width | 64A09236 | ||
| 64A12236 |
|
Offset Reducer Splice Plate, 4" Height, 12" Reduction Width | 64A12236 | ||
| 64A18236 |
|
Offset Reducer Splice Plate, 4" Height, 18" Reduction Width | 64A18236 | ||
| 66A03236 |
|
Offset Reducer Splice Plate, 6" Height, 3" Reduction Width | 66A03236 | ||
| 66A06236 |
|
Offset Reducer Splice Plate, 6" Height, 6" Reduction Width | 66A06236 | ||
| 66A09236 |
|
Offset Reducer Splice Plate, 6" Height, 9" Reduction Width | 66A09236 | ||
| 66A12236 |
|
Offset Reducer Splice Plate, 6" Height, 12" Reduction Width | 66A12236 | ||
| 66A18236 |
|
Offset Reducer Splice Plate, 6" Height, 18" Reduction Width | 66A18236 |
ALUAluminium
