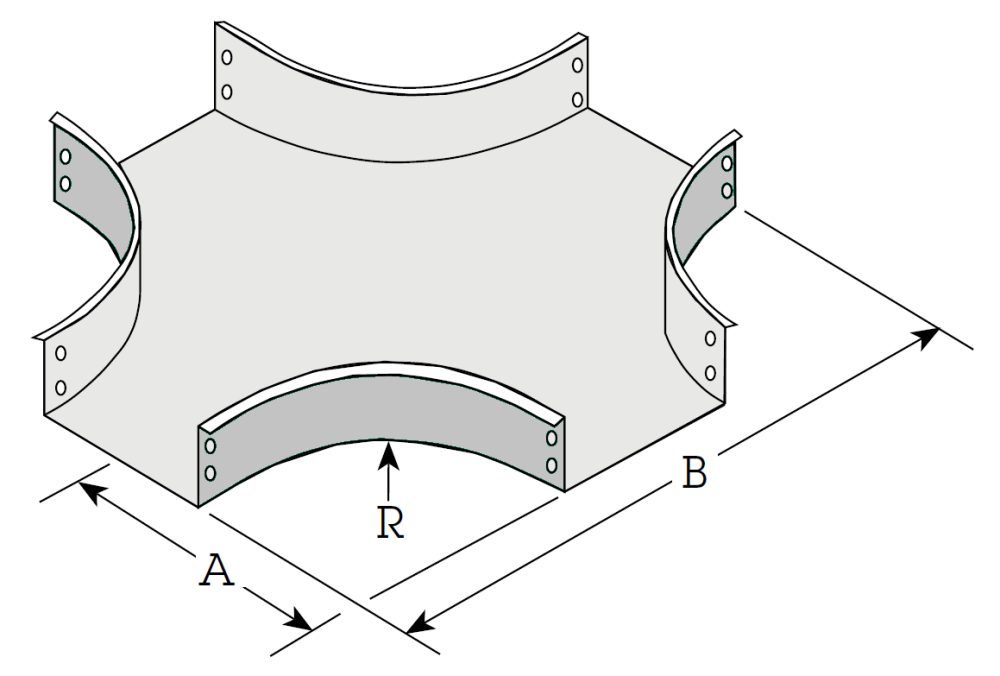

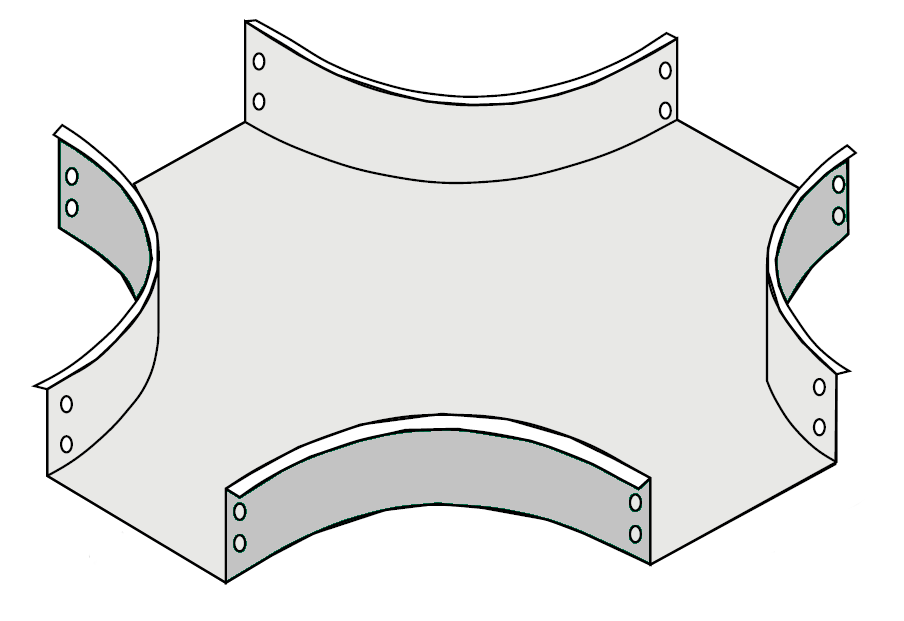

Cross, Aluminum
Series 6 Fittings are solid bottom with a 3" tangent for easy fit-up during installation. Bottoms are MIG welded on the outside to eliminate any weld splatter or roughness. 12" bend radius fittings are recommended for the majority of low voltage and communications cables. 30° and 60° are also available.
To be used with:
Series 6, Cross Covers

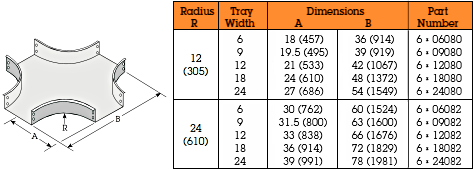

| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 6A06080 |
|
Cross, 12" Radius, for Series 6 Trough Cable Tray, 6" Width, Aluminum | 1 | 6A06080 | |
| 6A09080 |
|
Cross, 12" Radius, for Series 6 Trough Cable Tray, 9" Width, Aluminum | 1 | 6A09080 | |
| 6A12080 |
|
Cross, 12" Radius, for Series 6 Trough Cable Tray, 12" Width, Aluminum | 1 | 6A12080 | |
| 6A18080 |
|
Cross, 12" Radius, for Series 6 Trough Cable Tray, 18" Width, Aluminum | 1 | 6A18080 | |
| 6A24080 |
|
Cross, 12" Radius, for Series 6 Trough Cable Tray, 24" Width, Aluminum | 1 | 6A24080 | |
| 6A06082 |
|
Cross, 24" Radius, for Series 6 Trough Cable Tray, 6" Width, Aluminum | 1 | 6A06082 | |
| 6A09082 |
|
Cross, 24" Radius, for Series 6 Trough Cable Tray, 9" Width, Aluminum | 1 | 6A09082 | |
| 6A12082 |
|
Cross, 24" Radius, for Series 6 Trough Cable Tray, 12" Width, Aluminum | 1 | 6A12082 | |
| 6A18082 |
|
Cross, 24" Radius, for Series 6 Trough Cable Tray, 18" Width, Aluminum | 1 | 6A18082 | |
| 6A24082 |
|
Cross, 24" Radius, for Series 6 Trough Cable Tray, 24" Width, Aluminum | 1 | 6A24082 |
Aluminium
