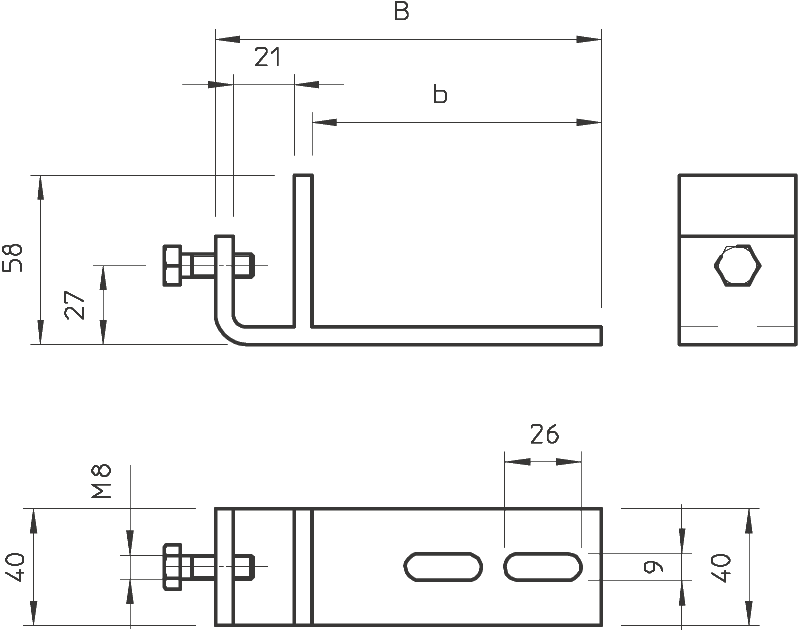

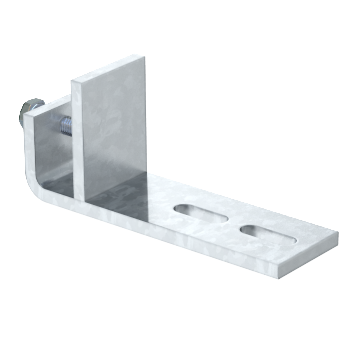

Vertical Beam Support

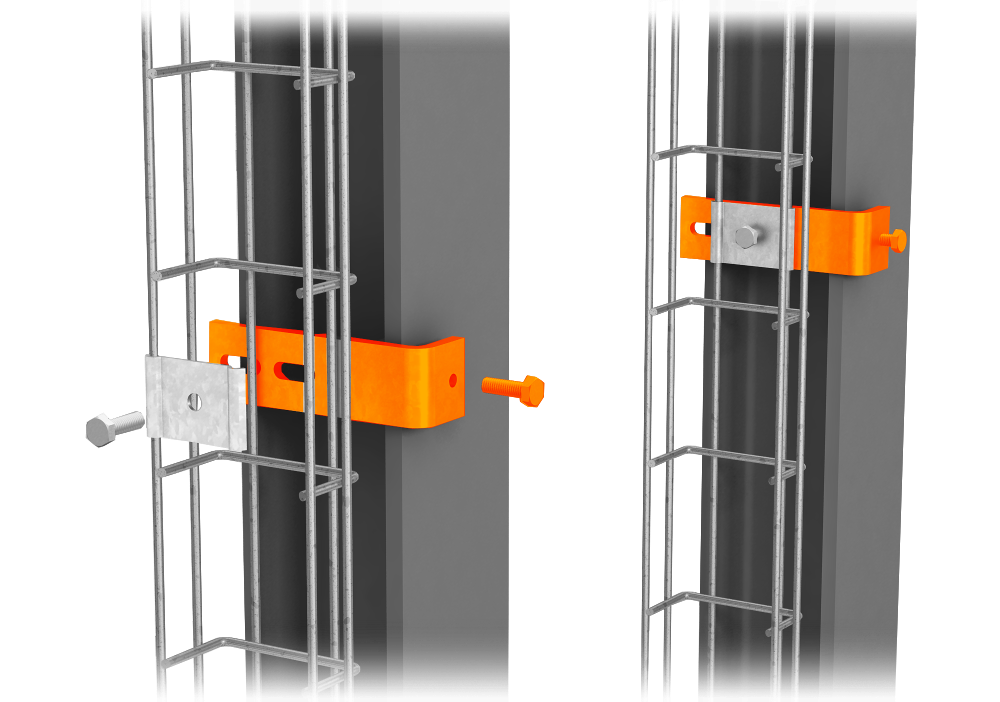

The cable support system attached to the beam clamp runs vertically.
Beam clamp for clamping on the steel girder.
Mount Tray using (1) Hold Down Clamp, sold separately.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| WMVBS4G |
|
Vertical Beam Support, Tray width 4" - 6", Hot Dipped | 10 | 85.98 | 6003880 |
| WMVBS8G |
|
Vertical Beam Support, Tray width 8", Hot Dipped | 10 | 99.21 | 6003888 |
| WMVBS4T |
|
Vertical Beam Support, Tray width 4" - 6", Stainless Steel, grade 304 | 10 | 83.78 | 6003871 |
| WMVBS8T |
|
Vertical Beam Support, Tray width 8", Stainless Steel, grade 304 | 10 | 101.41 | 6003877 |
Hot-Dipped Galvanised
Stainless Steel 304
Additional Information
Chalfant GR-Magic Wire Mesh Tray Catalog
