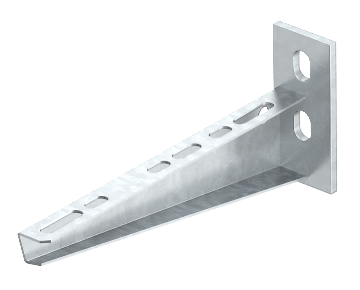

Wall Bracket
Wall and support bracket with welded head plate and two fastening holes.
The double-perforated bracket offers the special option of double anchoring on lightweight partitions and light masonry.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| WM04322 |
|
Wall Bracket, 4" (110 mm) | 30 | 35.27 | 6420909 |
| WM06322 |
|
Wall Bracket, 6" (160 mm) | 30 | 44.09 | 6420912 |
| WM08322 |
|
Wall Bracket, 8" (210 mm) | 30 | 63.93 | 6420915 |
| WM12322 |
|
Wall Bracket, 12" (310 mm) | 30 | 92.60 | 6420918 |
| WM18322 |
|
Wall Bracket, 18" (510 mm) | 20 | 158.73 | 6420924 |
| WM24322 |
|
Wall Bracket, 24" (610 mm) | 18 | 200.62 | 6420927 |
Hot-Dipped Galvanised
Additional Information
Chalfant GR-Magic Wire Mesh Tray Catalog
