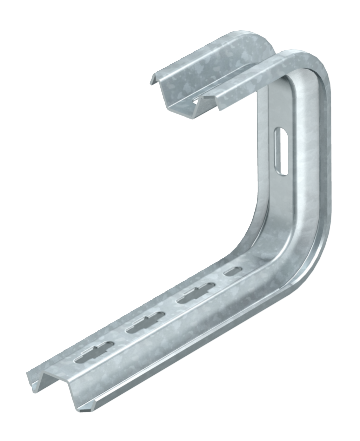

C - Bracket

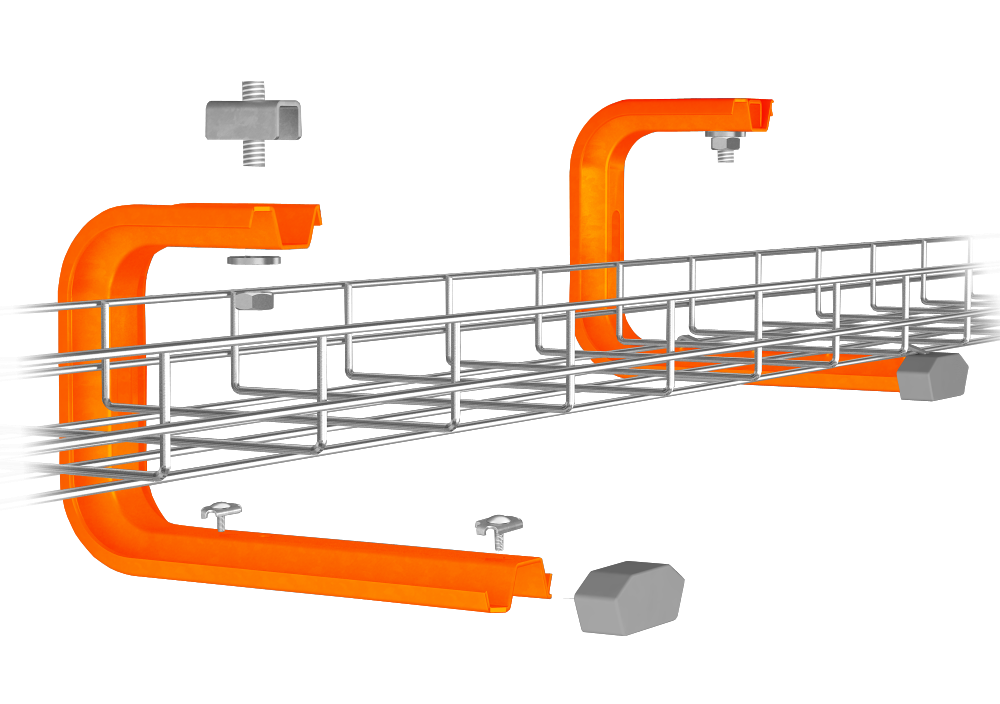

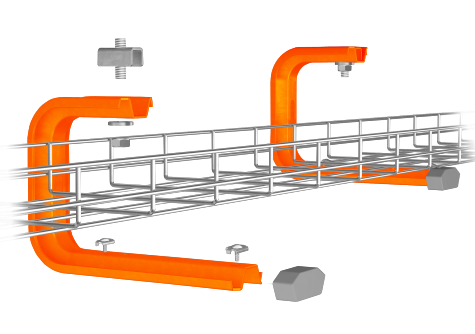

C style wall and ceiling bracket for universal use.

Important! If the ceiling bracket is fastened directly to the wall or ceiling, then, for reasons of stability, always use the spacer, type DS 4.
Max. side height of the cable support system 60 mm.

Type Name Pack pcs.
Weight
lb/100pc
Sku
WMCBKT04
C - Bracket, for Tray width 4" (100 mm), Strip Galvanised 6 105.82 6363806
WMCBKT08
C - Bracket, for Tray width 8" (200 mm), Strip Galvanised 5 145.50 6363814
WMCBKT12
C - Bracket, for Tray width 12" (300 mm), Strip Galvanised 5 171.96 6363822
FSStrip Galvanised
