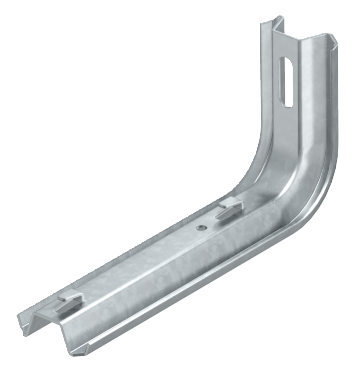

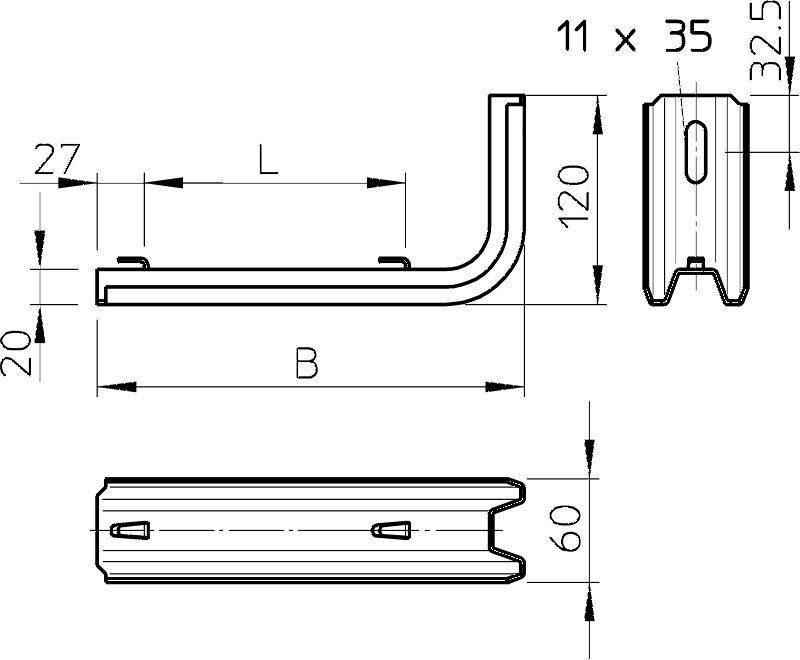

L - Tab Bracket

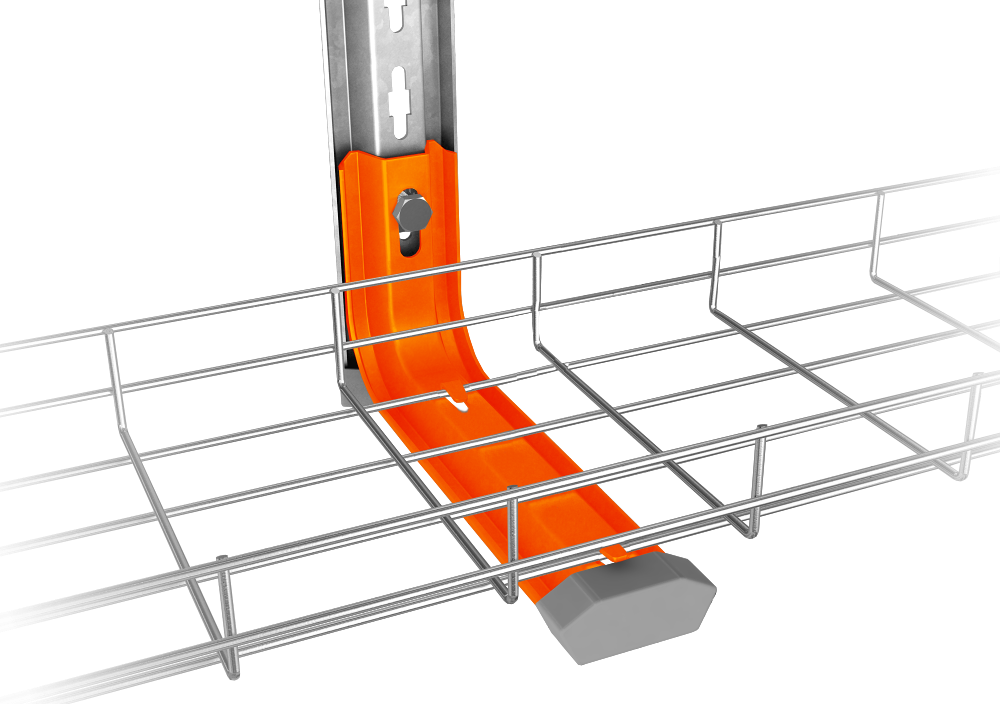

L - Tab Bracket with clamping lugs for screwless mesh cable tray fastening.

If the bracket is fastened directly to the wall or the profiles are screwed together, then, for reasons of stability, always use the spacer, type DS 4

Type Name Pack pcs.
Weight
lb/100pc
Sku
WMTSL04
L - Tab Bracket, for Tray width 4" (100 mm), Strip Galvanised 50 72.75 6366015
WMTSL06
L - Tab Bracket, for Tray width 6" (150 mm), Strip Galvanised 20 90.39 6366023
WMTSL08
L - Tab Bracket, for Tray width 8" (200 mm), Strip Galvanised 20 105.82 6366031
WMTSL12
L - Tab Bracket, for Tray width 12" (300 mm), Strip Galvanised 20 134.48 6366066
FSStrip Galvanised
