Straight Reducer Splice Plate

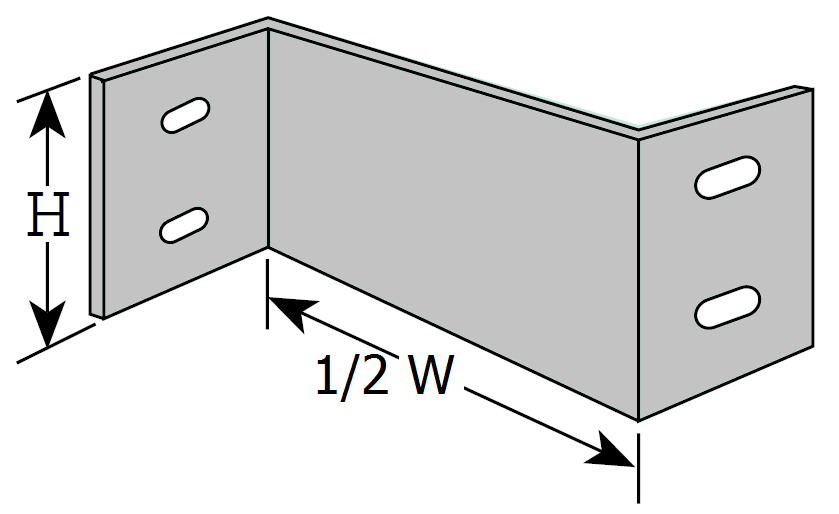

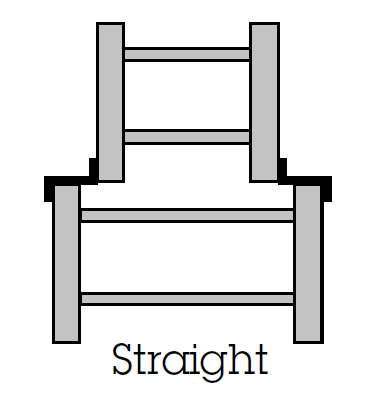

For a concentric straight reduction, the dimension "W" is the total reduction.
For all size options, see the Part Number Builder graphic below using the following variables:
ǂǂ = Tray System
* = Type of Material
(A = Aluminum)
For example: The part number for a Straight Reducer Splice Plate, with a width of 12", to be used with 35A Ladder Tray would be: 35A12237.
35 = Tray System
A = Type of Material (Aluminum)
12 = Total Reduction Width in Inches*
237 = Corresponding sku suffix for a Straight Reducer
Splice Plate.
*Box contains (2) 6" Reducer Splice Plates, for a total reduction of 12".
| Type | Name | Pack pcs. | Weight lb/100pc | Sku | |
|---|---|---|---|---|---|
| 14A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 14A Light Duty Aluminum Ladder Tray. | 14A03237 | ||
| 24A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 24A Light Duty Aluminum Ladder Tray. | 24A03237 | ||
| 2A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 2A Medium Duty Aluminum Ladder Tray. | 2A03237 | ||
| 34A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 34A Heavy Duty Aluminum Ladder Tray. | 34A03237 | ||
| 15A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 15A Light Duty Aluminum Ladder Tray. | 15A03237 | ||
| 35A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 35A Medium Duty Aluminum Ladder Tray. | 35A03237 | ||
| 45A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 45A Heavy Duty Aluminum Ladder Tray. | 45A03237 | ||
| 16A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 16A Light Duty Aluminum Ladder Tray. | 16A03237 | ||
| 29A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 29A Light Duty Aluminum Ladder Tray. | 29A03237 | ||
| 26A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 26A Medium Duty Aluminum Ladder Tray. | 26A03237 | ||
| 3A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 3A Heavy Duty Aluminum Ladder Tray. | 3A03237 | ||
| 46A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 46A Heavy Duty Aluminum Ladder Tray. | 46A03237 | ||
| 665A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 665A Heavy Duty Aluminum Ladder Tray. | 665A03237 | ||
| 47A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 47A Heavy Duty Aluminum Ladder Tray. | 47A03237 | ||
| 57A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 57A Heavy Duty Aluminum Ladder Tray. | 57A03237 | ||
| 875A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 875A Heavy Duty Aluminum Ladder Tray. | 875A03237 | ||
| 8HAF03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 8HAF Heavy Duty Aluminum Ladder Tray. | 8HAF03237 | ||
| 103A03237 |
|
Reducer Splice Plate for a straight 3" reduction. Used with 103A Heavy Duty Aluminum Ladder Tray. | 103A03237 |
ALUAluminium
