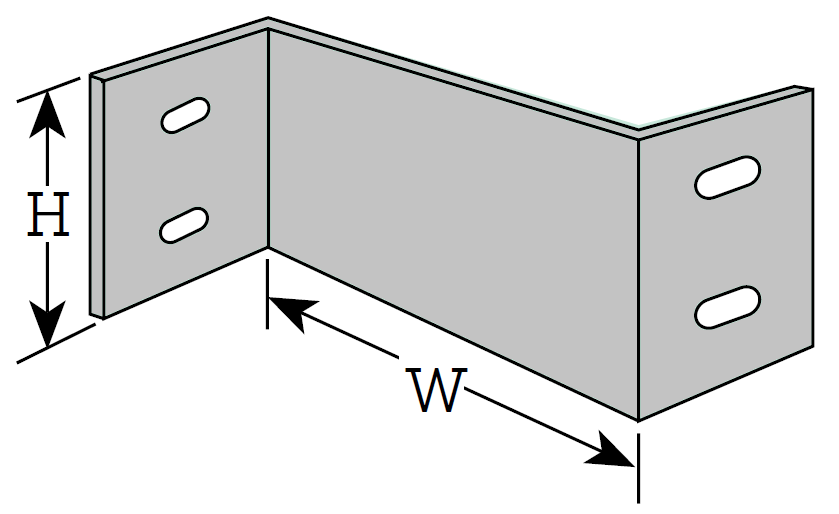

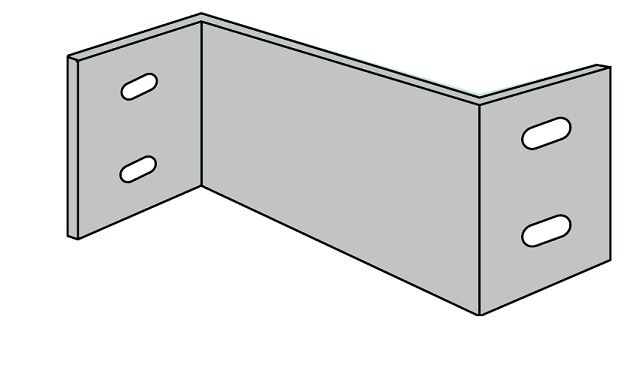

Offset Reducer Splice Plate

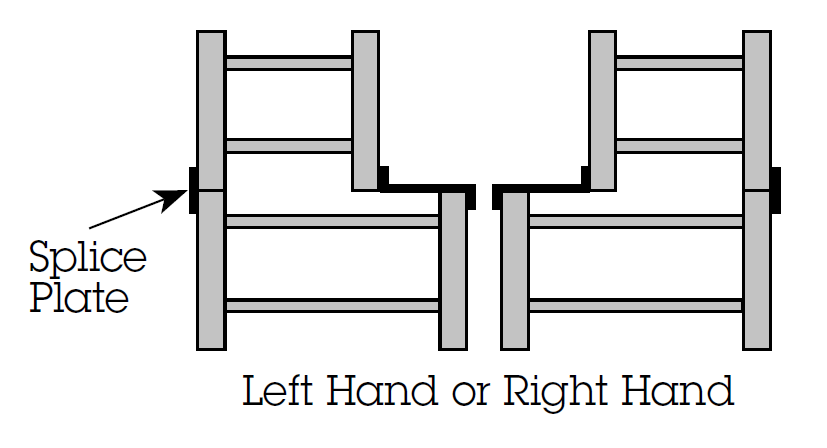

Where application calls for a left or right hand reduction, Chalfant reducing splice plates are sold with a standard splice plate ǂǂ * SP200.

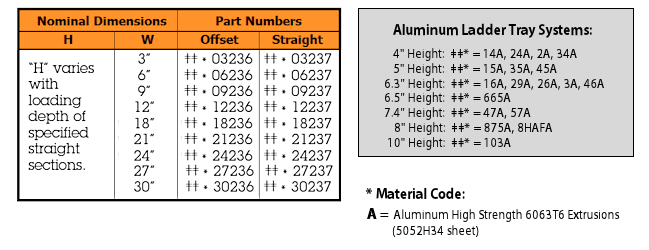

For all size options, see the Part Number Builder graphic below using the following variables:
ǂǂ = Tray System
* = Type of Material
(A = Aluminum)
For example: The part number for an Offset Reducer Splice Plate, with a width of 12", to be used with 35A Ladder Tray would be: 35A12236.
35 = Tray System
A = Type of Material (Aluminum)
12 = Total Reduction Width in Inches
236 = Corresponding sku suffix for an Offset Reducer Splice Plate.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 14A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 14A Light Duty Aluminum Ladder Tray | 14A03236 | ||
| 24A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 24A Light Duty Aluminum Ladder Tray | 24A03236 | ||
| 2A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 2A Medium Duty Aluminum Ladder Tray | 2A03236 | ||
| 34A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 34A Heavy Duty Aluminum Ladder Tray | 34A03236 | ||
| 15A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 15A Light Duty Aluminum Ladder Tray | 15A03236 | ||
| 35A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 35A Medium Duty Aluminum Ladder Tray | 35A03236 | ||
| 45A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 45A Heavy Duty Aluminum Ladder Tray | 45A03236 | ||
| 16A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 16A Light Duty Aluminum Ladder Tray | 16A03236 | ||
| 29A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 29A Light Duty Aluminum Ladder Tray | 29A03236 | ||
| 26A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 26A Medium Duty Aluminum Ladder Tray | 26A03236 | ||
| 3A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 3A Heavy Duty Aluminum Ladder Tray | 3A03236 | ||
| 46A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 46A Heavy Duty Aluminum Ladder Tray | 46A03236 | ||
| 665A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 665A Heavy Duty Aluminum Ladder Tray | 665A03236 | ||
| 47A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 47A Heavy Duty Aluminum Ladder Tray | 47A03236 | ||
| 57A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 57A Heavy Duty Aluminum Ladder Tray | 57A03236 | ||
| 875A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 875A Heavy Duty Aluminum Ladder Tray | 875A03236 | ||
| 8HAF03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 8HAF Heavy Duty Aluminum Ladder Tray | 8HAF03236 | ||
| 103A03236 |
|
Reducer Splice Plate for a 3" reduction. Used with 103A Heavy Duty Aluminum Ladder Tray | 103A03236 |
Aluminium
Description
