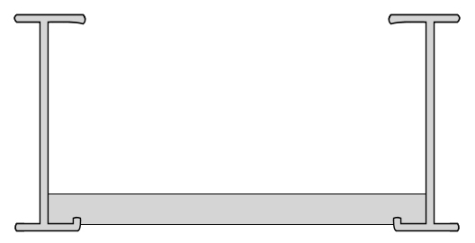

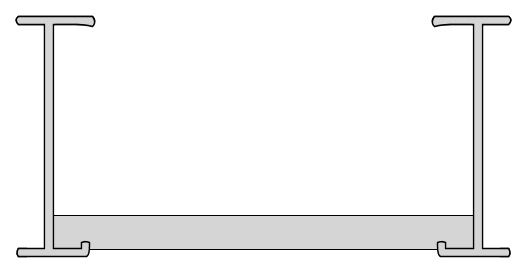

47A - 7" Side Height, Heavy Duty Ladder Tray
47A - Heavy Duty Aluminum Ladder Tray
Side Height - 7.36"
Load Depth - 6.4"
NEMA Load / Span Rating - 20C / 24B
Cable Loading (lb/ft) -
12' Span - 288 (lb/ft)
14' Span - 212 (lb/ft)
16' Span - 162 (lb/ft)
18' Span - 128 (lb/ft)
20' Span - 104 (lb/ft)
24' Span - 72 (lb/ft)
*Rung spacing available in 6", 9", 12", and 18".
Refer to part number chart to the right for all custom sizes and styles.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 47A06010-09 |
|
6" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 47A06010-09 | |
| 47A09010-09 |
|
9" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 47A09010-09 | |
| 47A12010-09 |
|
12" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 47A12010-09 | |
| 47A18010-09 |
|
18" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 47A18010-09 | |
| 47A24010-09 |
|
24" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 47A24010-09 | |
| 47A30010-09 |
|
30" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 47A30010-09 | |
| 47A36010-09 |
|
36" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 47A36010-09 | |
| 47A42010-09 |
|
42" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 47A42010-09 | |
| 47A06010-09L |
|
6" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 47A06010-09L | |
| 47A09010-09L |
|
9" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 47A09010-09L | |
| 47A12010-09L |
|
12" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 47A12010-09L | |
| 47A18010-09L |
|
18" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 47A18010-09L | |
| 47A24010-09L |
|
24" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 47A24010-09L | |
| 47A30010-09L |
|
30" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 47A30010-09L | |
| 47A36010-09L |
|
36" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 47A36010-09L | |
| 47A42010-09L |
|
42" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 47A42010-09L |
Aluminium
