665A - 6" Side Height, Heavy Duty Ladder Tray
665A - Heavy Duty Aluminum Ladder Tray

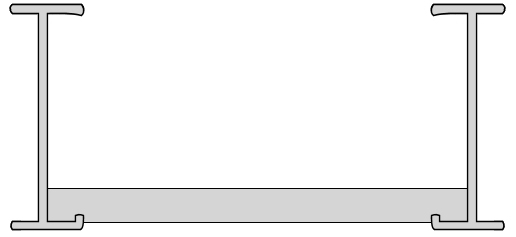

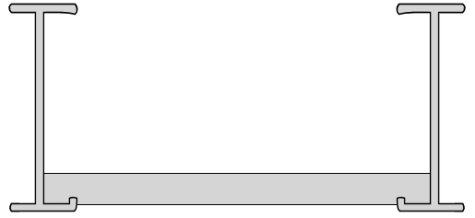

Side Height - 6.5"
Load Depth - 5.4" or 6"
NEMA Load / Span Rating - 24C
Cable Loading (lb/ft) -
12' Span - 430 (lb/ft)
14' Span - 316 (lb/ft)
16' Span - 242 (lb/ft)
18' Span - 191 (lb/ft)
20' Span - 155 (lb/ft)
24' Span - 104 (lb/ft)
*Rung spacing available in 6", 9", 12", and 18".
Refer to part number chart to the right for all custom sizes and styles.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 665A06010-09 |
|
6" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 665A06010-09 | |
| 665A09010-09 |
|
9" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 665A09010-09 | |
| 665A12010-09 |
|
12" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 665A12010-09 | |
| 665A18010-09 |
|
18" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 665A18010-09 | |
| 665A24010-09 |
|
24" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 665A24010-09 | |
| 665A30010-09 |
|
30" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 665A30010-09 | |
| 665A36010-09 |
|
36" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 665A36010-09 | |
| 665A42010-09 |
|
42" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 665A42010-09 | |
| 665A06010-09L |
|
6" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 665A06010-09L | |
| 665A09010-09L |
|
9" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 665A09010-09L | |
| 665A12010-09L |
|
12" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 665A12010-09L | |
| 665A18010-09L |
|
18" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 665A18010-09L | |
| 665A24010-09L |
|
24" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 665A24010-09L | |
| 665A30010-09L |
|
30" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 665A30010-09L | |
| 665A36010-09L |
|
36" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 665A36010-09L | |
| 665A42010-09L |
|
42" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 665A42010-09L |
Aluminium
