45A - 5" Side Height, Heavy Duty Ladder Tray
45A - Heavy Duty Aluminum Ladder Tray

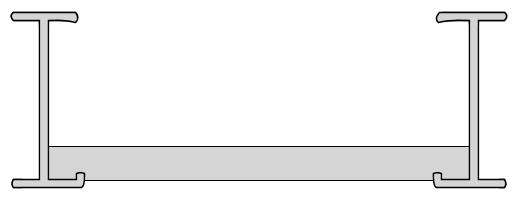

Side Height - 5"
Load Depth - 4.1"
NEMA Load / Span Rating - 20A / 16B
Cable Loading (lb/ft) -
12' Span - 149 (lb/ft)
14' Span - 110 (lb/ft)
16' Span - 84 (lb/ft)
18' Span - 66 (lb/ft)
20' Span - 53 (lb/ft)
*Rung spacing available in 6", 9", 12", and 18".
Refer to part number chart to the right for all custom sizes and styles.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 45A06010-09 |
|
6" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 45A06010-09 | |
| 45A09010-09 |
|
9" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 45A09010-09 | |
| 45A12010-09 |
|
12" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 45A12010-09 | |
| 45A18010-09 |
|
18" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 45A18010-09 | |
| 45A24010-09 |
|
24" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 45A24010-09 | |
| 45A30010-09 |
|
30" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 45A30010-09 | |
| 45A36010-09 |
|
36" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 45A36010-09 | |
| 45A42010-09 |
|
42" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 45A42010-09 | |
| 45A06010-09L |
|
6" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 45A06010-09L | |
| 45A09010-09L |
|
9" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 45A09010-09L | |
| 45A12010-09L |
|
12" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 45A12010-09L | |
| 45A18010-09L |
|
18" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 45A18010-09L | |
| 45A24010-09L |
|
24" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 45A24010-09L | |
| 45A30010-09L |
|
30" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 45A30010-09L | |
| 45A36010-09L |
|
36" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 45A36010-09L | |
| 45A42010-09L |
|
42" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 45A42010-09L |
Aluminium
