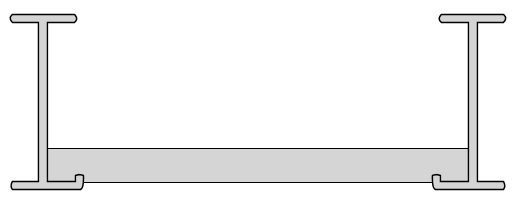

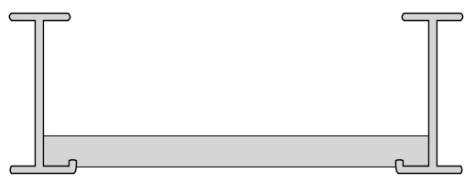

35A - 5" Side Height, Medium Duty Ladder Tray
35A - Medium Duty Aluminum Ladder Tray
Side Height - 5"
Load Depth - 4.1"
NEMA Load / Span Rating - 16A / 12C
Cable Loading (lb/ft) -
10' Span - 161 (lb/ft)
12' Span - 112 (lb/ft)
14' Span - 82 (lb/ft)
16' Span - 60 (lb/ft)
*Rung spacing available in 6", 9", 12", and 18".
Refer to part number chart to the right for all custom sizes and styles.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| 35A06010-09 |
|
6" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 35A06010-09 | |
| 35A09010-09 |
|
9" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 35A09010-09 | |
| 35A12010-09 |
|
12" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 35A12010-09 | |
| 35A18010-09 |
|
18" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 35A18010-09 | |
| 35A24010-09 |
|
24" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 35A24010-09 | |
| 35A30010-09 |
|
30" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 35A30010-09 | |
| 35A36010-09 |
|
36" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 35A36010-09 | |
| 35A42010-09 |
|
42" Wide - 12' Long - 9" Rung Spacing | 1- 12' Length | 35A42010-09 | |
| 35A06010-09L |
|
6" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 35A06010-09L | |
| 35A09010-09L |
|
9" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 35A09010-09L | |
| 35A12010-09L |
|
12" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 35A12010-09L | |
| 35A18010-09L |
|
18" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 35A18010-09L | |
| 35A24010-09L |
|
24" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 35A24010-09L | |
| 35A30010-09L |
|
30" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 35A30010-09L | |
| 35A36010-09L |
|
36" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 35A36010-09L | |
| 35A42010-09L |
|
42" Wide - 24' Long - 9" Rung Spacing | 1- 24' Length | 35A42010-09L |
Aluminium
