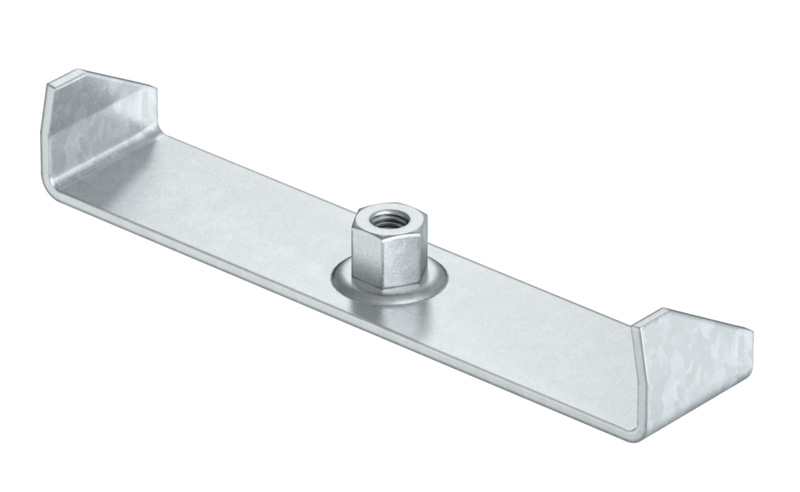

Central Hanger for Cable Trough, Side Height 1"
Central suspension for cable trays with a rolled side rail of side height 35mm.
The central suspension possesses a rotatable M10 threaded sleeve. When filling ensure an even distribution of the load (avoid one-sided filling).
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| MAH 35 100 FS |
|
Central Hanger for Cable Trough, Side Height 1", 4" Width, Strip-Galvanized | 20 | 20.72 | 6358690 |
| MAH 35 200 FS |
|
Central Hanger for Cable Trough, Side Height 1", 8" Width, Strip-Galvanized | 20 | 41.01 | 6358692 |
| MAH 35 300 FS |
|
Central Hanger for Cable Trough, Side Height 1", 12" Width, Strip-Galvanized | 20 | 61.07 | 6358694 |
Strip Galvanised
Description
Central suspension for cable trays with a rolled side rail of side height 35mm.
The central suspension possesses a rotatable M10 threaded sleeve. When filling ensure an even distribution of the load (avoid one-sided filling).
Technical Information
