Assembly Angle 45°

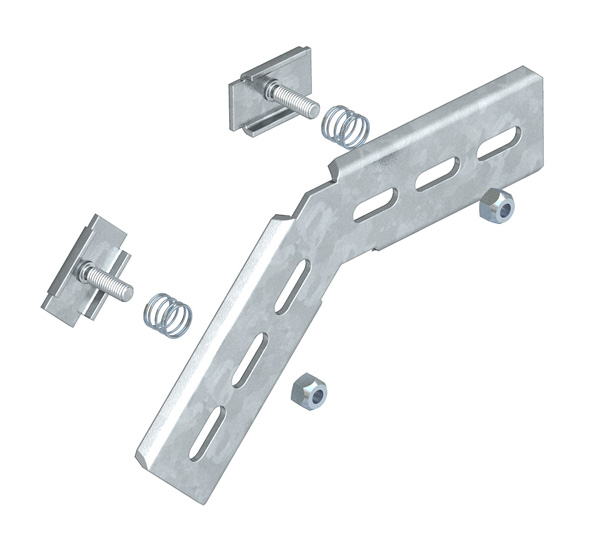

Each with two clamps of type KS 23/35.

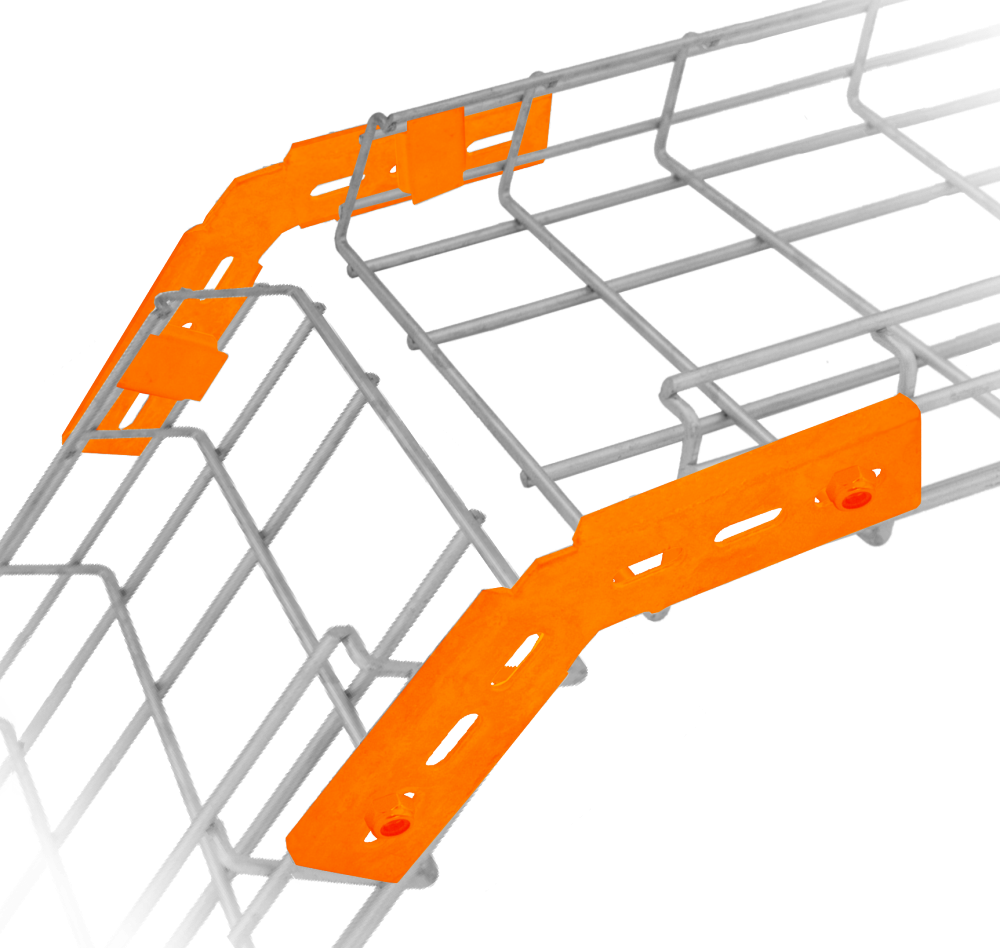

45 Degree installation profile, vertical, for C Mesh cable tray and GR-Magic mesh cable tray with a side height of 55 mm.

Type Name Pack pcs.
Weight
lb/100pc
Sku
WM45ASMG
Assembly Angle 45° - Hot Dipped Galvanised 20 46.30 6017320
WM45ASMT
Assembly Angle 45° - Stainless Steel, grade 304 20 44.10 6017339
FTHot-Dipped Galvanised
V2AStainless Steel 304
