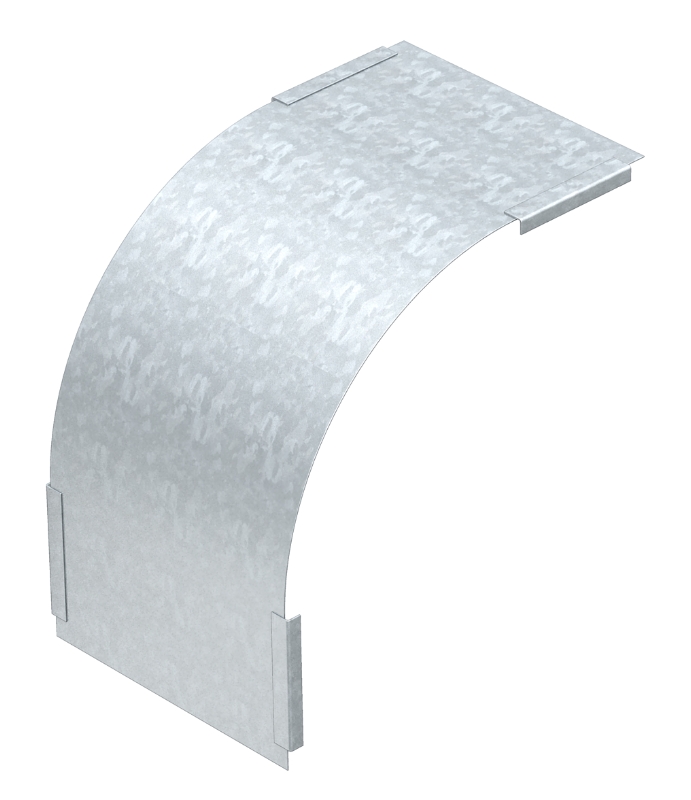

Cover for 90° Vertical Bend, Falling, Side Height 1"
The fastening is guaranteed by the overlap of the cable tray covers. The cover can also be fastened using cover clamps.
| Type | Name | Pack pcs. | Weight lb/100pc |
Sku | |
|---|---|---|---|---|---|
| DBV 35 100 F FS |
|
Cover for 90° Vertical Bend, Falling, Side Height 1", 4" Width, Strip-Galvanized | 1 | 50.71 | 7130764 |
| DBV 35 200 F FS |
|
Cover for 90° Vertical Bend, Falling, Side Height 1", 8" Width, Strip-Galvanized | 1 | 99.21 | 7130772 |
| DBV 35 300 F FS |
|
Cover for 90° Vertical Bend, Falling, Side Height 1", 12" Width, Strip-Galvanized | 1 | 147.71 | 7130776 |
Strip Galvanised
Technical Information
Technical Documents
Brief Instructions, KTS
Additional Information
RKS-Magic Catalog
