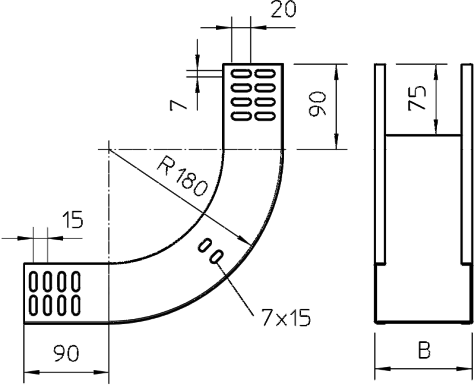

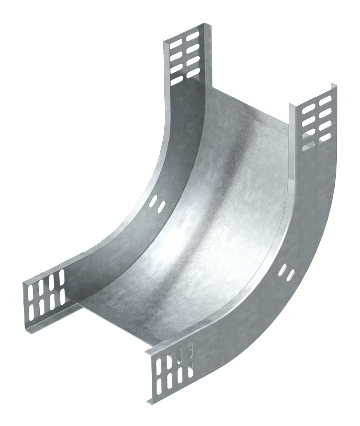

90° Vertical Bend, Rising, 2" Height

90° rising vertical bend, for all ventialted cable tray types with a 2" side height.

The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.

Type Name Pack pcs.
Weight
lb/100pc
Sku
RBV 610 S FS
90° Vertical Bend, Rising, 2" Height, 4" Width, Strip Galvanized 1 145.51 7007005
RBV 615 S FS
90° Vertical Bend, Rising, 2" Height, 6" Width, Strip Galvanized 1 171.96 7007009
RBV 620 S FS
90° Vertical Bend, Rising, 2" Height, 8" Width, Strip Galvanized 1 209.44 7007013
RBV 630 S FS
90° Vertical Bend, Rising, 2" Height, 12" Width, Strip Galvanized 1 273.37 7007017
RBV 640 S FS
90° Vertical Bend, Rising, 2" Height, 16" Width, Strip Galvanized 1 337.31 7007021
RBV 650 S FS
90° Vertical Bend, Rising, 2" Height, 20" Width, Strip Galvanized 1 399.04 7007025
RBV 660 S FS
90° Vertical Bend, Rising, 2" Height, 24" Width, Strip Galvanized 1 462.97 7007029
RBV 610 S FT
90° Vertical Bend, Rising, 2" Height, 4" Width, Hot Dipped 1 156.53 7007006
RBV 615 S FT
90° Vertical Bend, Rising, 2" Height, 6" Width, Hot Dipped 1 185.19 7007010
RBV 620 S FT
90° Vertical Bend, Rising, 2" Height, 8" Width, Hot Dipped 1 227.08 7007014
RBV 630 S FT
90° Vertical Bend, Rising, 2" Height, 12" Width, Hot Dipped 1 255.70 7007068
RBV 640 S FT
90° Vertical Bend, Rising, 2" Height, 16" Width, Hot Dipped 1 359.35 7007022
FTHot-Dipped Galvanised
FSStrip Galvanised
